INSTALLATION

Our Smartglass doesn’t need to be installed only to exterior facades, windows and doors but also to the interior, like curtain walls, glass partitions, cubicles, conference rooms even showers, and so on. The electrochromic Smartglass remains opaque when there is no current or when it is off, the glass turns transparent only when the electricity passes through it, also you can choose the level of transparency that you desire which can be adjusted by a remote control or by your Smartphone. Several companies are spending millions of dollars to find ways to curb the energy expenses and electochromic glass is the perfect answer for that, by providing privacy simultaneously saving big bucks on energy costs along with several other benefits.
This type of installation is not restricted only to commercial use but several homeowners and condo owners are installing this product in their homes to give that ultra modern clean look. Yes, smart glass is a niche’ market, today, but we will witness in our lifetimes that curtains and drapes are gradually going to the ‘Nokia and Kodak’, and Electrochromic Smart Glass by Smartglasscan Inc. is the ‘electric cars’. More and more people will choose Smartglass over germs and dust collecting, allergies storehouse and space guzzling curtains.

BASIC TOOLS

  • Rubber gloves
  • Mask
  • Spray Bottle
  • Hand pressure roller
  • Isopropyl Alcohol
  • Lint free micro fiber Cloth
  • Double Sided Tape (Thin one)
  • Window Scraper

ELECTRICAL TOOLS

  • 20 Gauge Wire
  • Translucent Silicone
  • Wire Stripper
  • Lead Free Solder

CLEANING PROCEDURE

  • Put on rubber glove
  • Use microfiber cloth to clean the glass surface
  • Wash the of glass to clean off the dirt
  • Let the surface dry completely
  • Spray the alcohol on the glass and wipe it clean
  • Make sure that there is no other residual and impurities on the glass
electrochrome

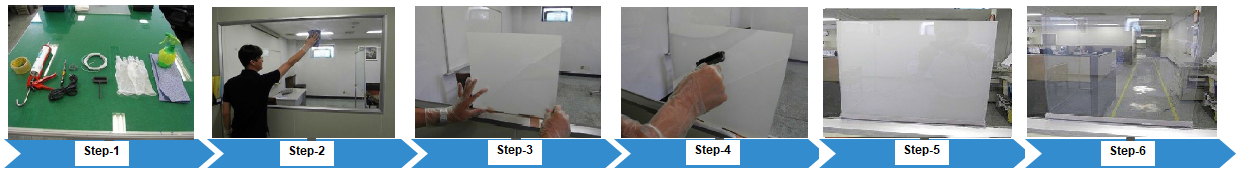

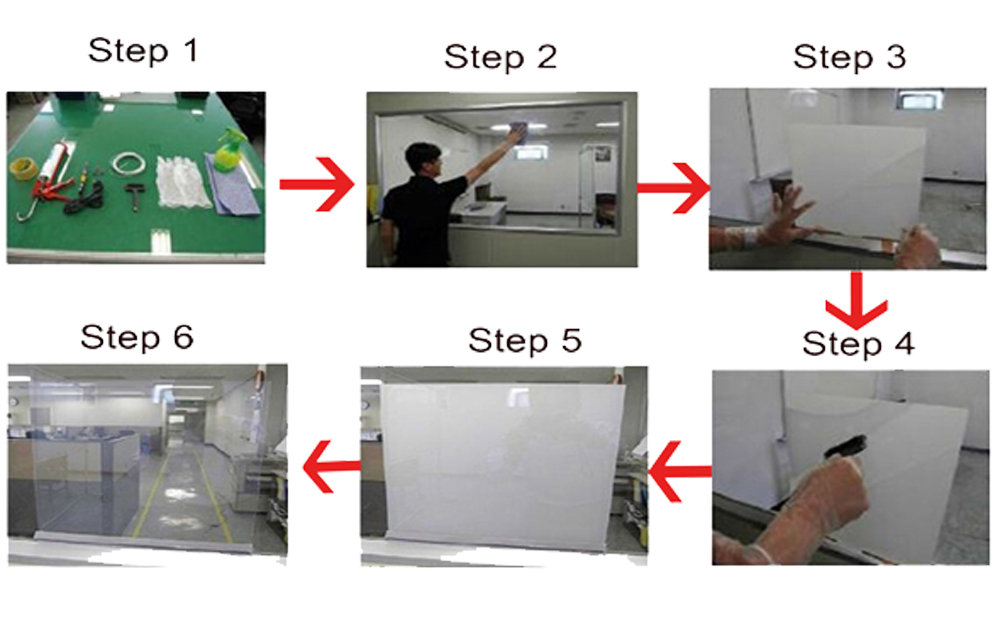

INSTALLATION PROCEDURE – SELF ADHESIVE FILM

  • Make sure you are in a dust free environment
  • Place the film on a clean table
  • Remove 2-3cm of the protective layer on the film
  • Make sure to leave the wires exposed for your electrician
  • Align the film on the glass
  • Start removing the protective layer little by little from a corner while you use the roller to remove any bubbles
  • Once the film is glued to the glass connect the wires as shown in the circuit diagram.

PRECAUTIONS

  • Do not use water under any circumstance
  • When ordering the film, the size should be smaller (2-3 mm less than the glass itself), to avoid direct contact between the edge of smart film and metal frame of the glass
  • Wear masks and gloves and install under dust-free environment

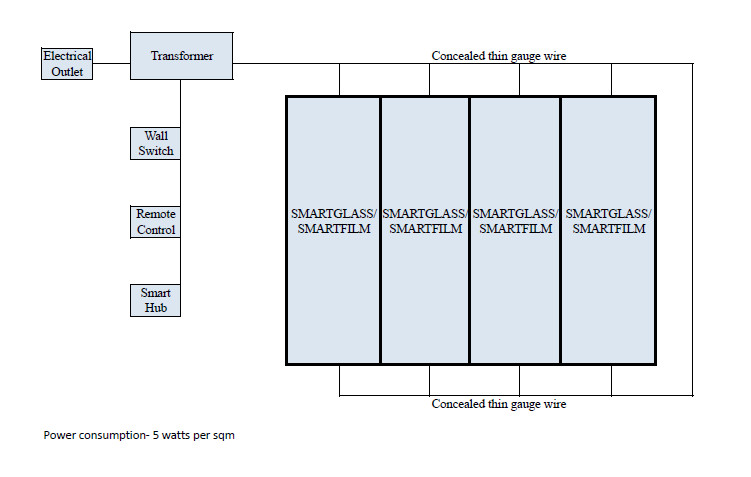

Circuit Diagram for Multitude Control

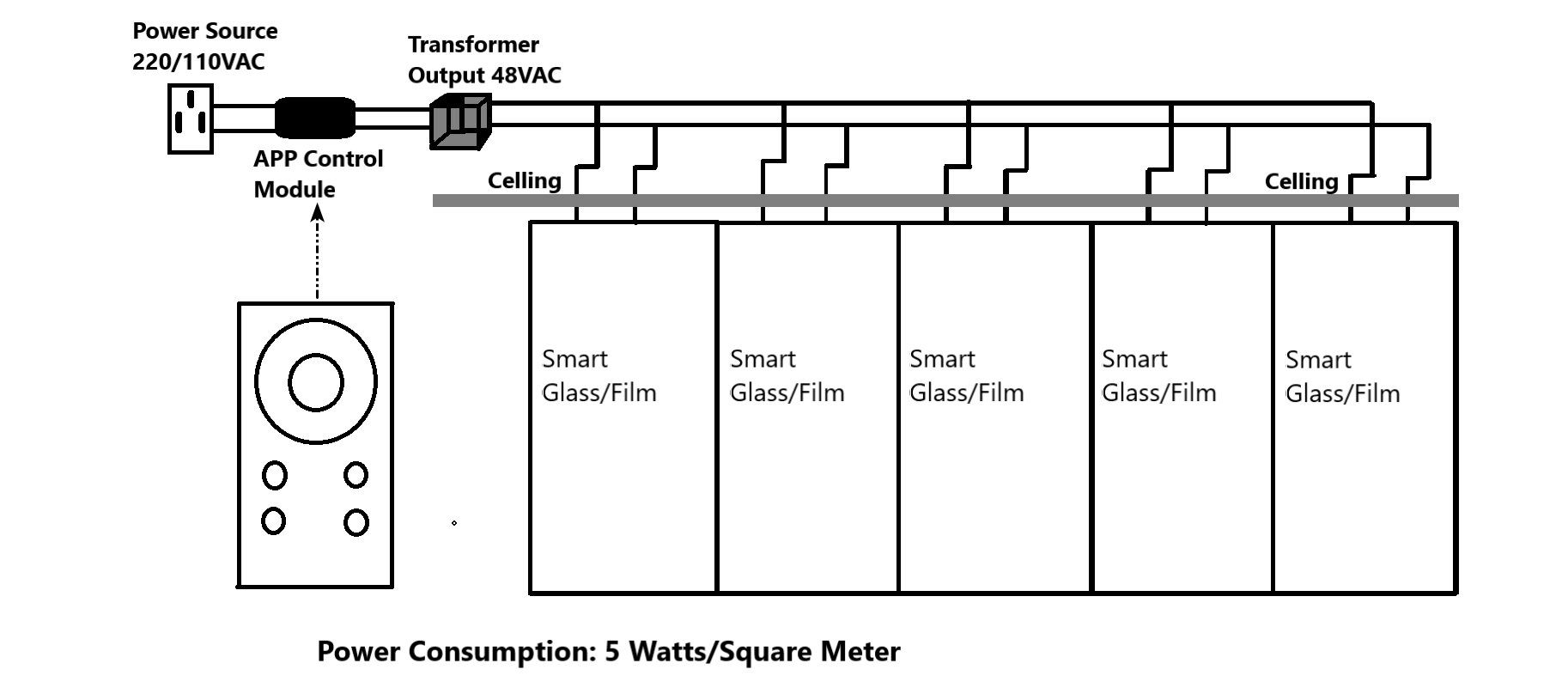

Circuit Diagram for Remote Control

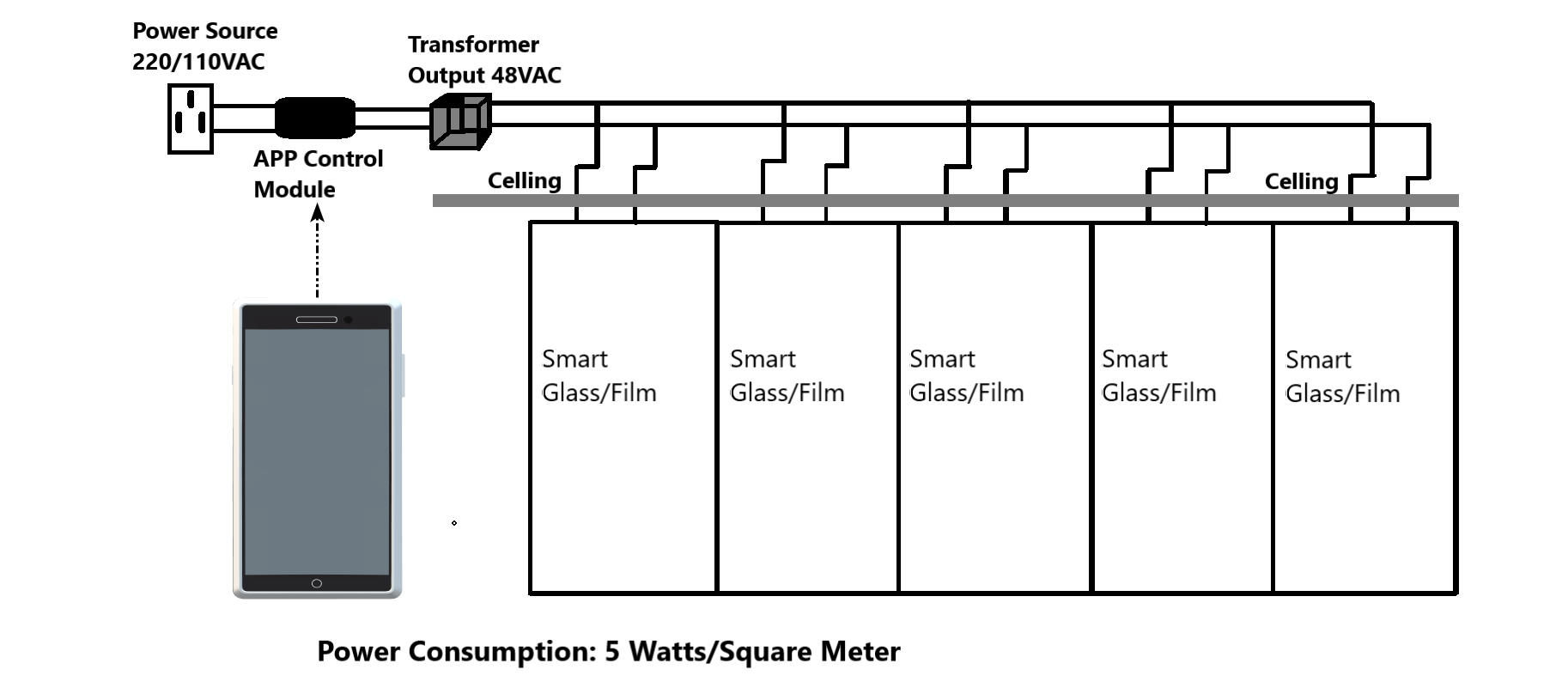

Circuit Diagram for Mobile Application
